I. Product Description

DEKOJIE DPS280/74DS underwater hull cavitation jet cleaning machine is an underwater marine biological cleaning equipment, which can be used to clean different types of ships, offshore oil platforms, docks, underwater pipelines and other marine organisms and other attachments.

II. Product performance

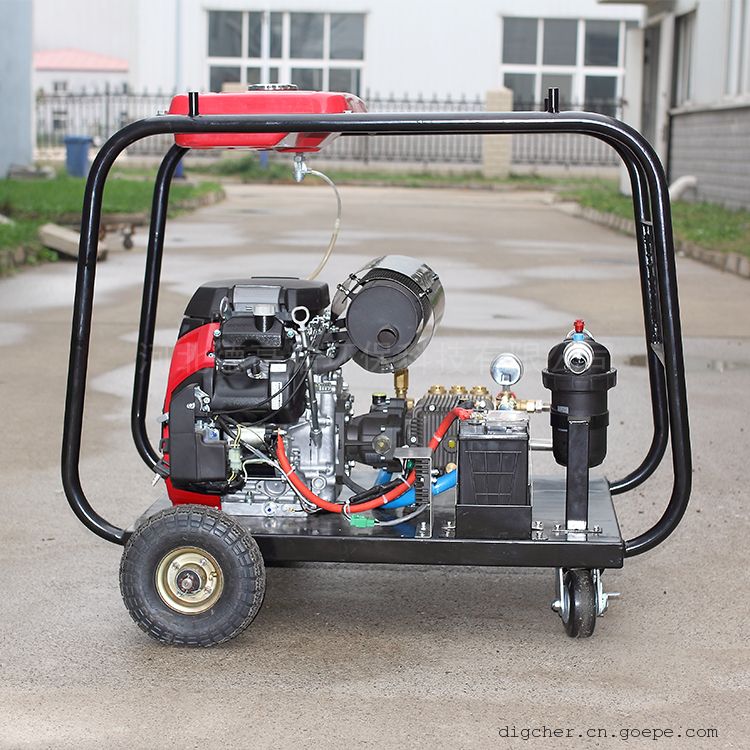

Degaojie DPS280/74DS underwater hull cavitation jet cleaning machine pump station adopts 316L stainless steel seawater resistant plunger pump system of European International Pump Group, which consists of industrial ceramic plunger, polymer sealing component, pressure regulating valve, safety valve, cavitation jet gun, diesel engine, electronic or pneumatic clutch, filter differential pressure alarm system, etc.

III. Working principle

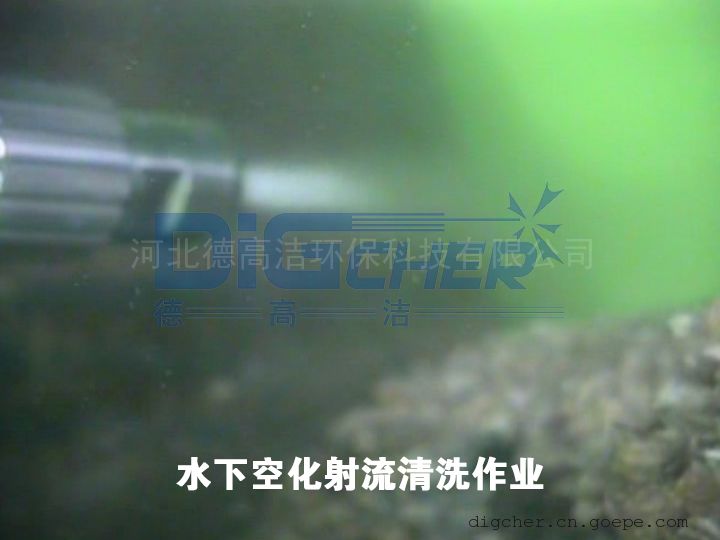

Cavitation jet underwater cleaning technology is a new type of underwater facility cleaning technology which introduces cavitation into water jet cleaning technology. By controlling the parameters such as pressure and velocity, a large number of cavitation bubbles are produced when the water stream passes through the cavitation nozzle. It is estimated that when the free cavitation bubble collapses, the flow velocity of the microjet near the wall can reach 70 to 180 m/s, the impact force generated on the surface of the object can reach 140 to 170 Mpa, the diameter of the microjet is about 2 to 3 m, and the number of microjet impacts on the surface is about 100 to 1000 times/(s cm ²).

IV. Product Features

1, easy to obtain materials, can be tap water, can also be sea water;
2, can be equipped with different actuators, cavitation jet cleaning gun, cavitation jet polisher, cavitation jet cleaning plate, to meet different underwater cleaning needs;
3, cleaning operation area is large, continuous working time is long, cleaning effect is good, cleaning operation can be carried out on large areas, greatly improving the efficiency of hull cleaning;
4, the use of cavitation principle, will not cause damage to the hull paint, varnish, corrosion protection layer; the operation process of non-toxic emissions, belongs to environmentally friendly cleaning technology;

V. Application fields

DECOJIE DPS280/74DS underwater hull cavitation jet cleaning machine can be equipped with cleaning devices mainly suitable for cleaning various curves, curved surfaces, cylinders and holes of the combined unloading cavitation spray gun and pulse cavitation jet gun, suitable for cleaning a wide range of flat surface cavitation jet cleaning plate, there are cavitation jet polishers for various types of propellers and other equipment sheet area for underwater cleaning, polishing and polishing.

VI. Efficiency


device type	Mud, seaweed (m²/h)	Shellfish and Molluscs (m²/h)	Calcareous dirt (m²/h)
Cavitation jet gun	100-200	50-100	30-50
Cavitation jet polisher	100-150	50	30
Cavitation jet cleaning disk	400	300	200
