Polysilicon reduction furnace bell jar automatic cleaning drying system Bell jar cleaning system

　　■ Scope of application

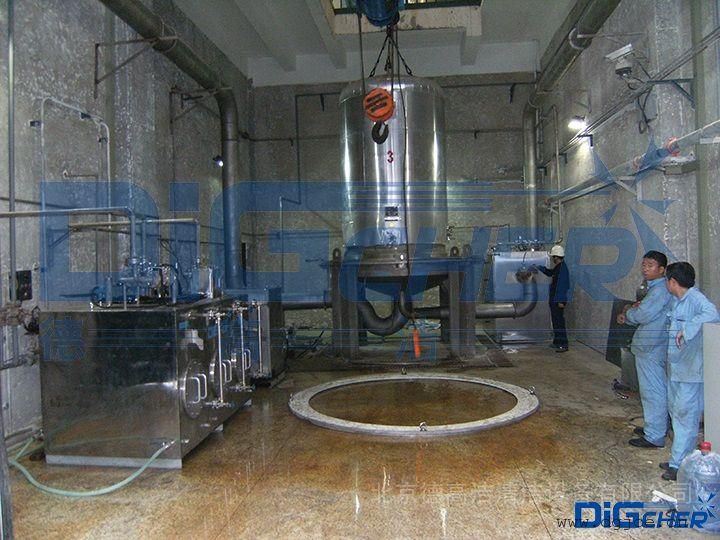

　　Automatic cleaning and drying of inner wall of bell jar (furnace barrel) of SIEMENS polysilicon reduction furnace.

　　■ Principle of operation

　　With high-pressure water jet as power and hydraulic self-driven three-dimensional tank washer as nozzle, 360 mesh spray surface is formed to complete the hydraulic sweep of the inner surface of the bell jar. Special cleaning agent is used as the main cleaning solution, pure water (deionized water or desalinated water) is used for rinsing, and high purity water is used for rinsing.

　　With purified air after three levels of purification (100,000 levels), step heating, * finally ensure that the dried bell jar no longer dew, can directly enter the production operation.

　　■ System characteristics

 1) Strong technical ability, reasonable design, according to customer needs, summarize and learn from domestic and foreign reduction furnace bell jar and other tank cleaning and drying experience, give full play to the technical advantages of high-pressure water cleaning and dust removal, design this set of system, realize the reduction furnace bell jar automatic cleaning and drying operation. Personalized design can be provided according to different users, bell jar of reduction furnace, workshop and different energy conditions.

 2) Reliable equipment performance, core components, components and accessories imported with original packaging.

 3) High degree of automation: PLC+ touch screen flexible automatic control system, to achieve automatic cleaning and drying of the reduction furnace bell jar at the same time with semi-automatic or manual functions.

 4) Wide range of application: cleaning and drying of bell jar of various types of reduction furnace can be realized in one set of system.

 5) Energy saving, environmental protection and safety: It provides a scheme for preheating (waste heat steam, residual hot water or oil) heating cleaning water and dry air. Fully enclosed cleaning and drying system basically eliminates the pollution to the site and operators.

 6) De Gaojie Group has branches and offices in Beijing, Shanghai, Shenzhen, Chengdu, Xi'an and Wuhan. The service system network is sound and spare parts are sufficient.

　　■ Workflow

　　Reduction furnace bell jar in place pre-cleaning cleaning agent (alkali) cleaning rinse high purity water rinse purification hot air drying normal temperature drying bell jar lifting away.

　　Note: The choice of cleaning agent has a direct impact on cleaning effect and operation safety. In this respect, our company has accumulated rich practical experience to solve problems such as flash explosion.

　　■ Basic conditions

　　1)Power supply: 380V/50Hz, 30KW, cable led to control cabinet.

　　2)Steam: pressure 0.175-0.9Mpa (G), to the specified interface point.

　　3)Compressed air: flow rate not less than 3NM3/h, pressure 0.6-0.75Mpa (G)(pneumatic valve, cylinder air), specified interface point.

　　4)Demineralized water: can provide conditions, not less than 100L/min, to the designated interface point.

　　5)Pure water: not less than 100L/min, to the designated point.

　　6)Cleaning agent: NaOH cleaning solution, etc., not less than 2 cubic meters.

　　7)Floor area: 36-80 square meters (about 6-7 meters wide, 6-12 meters long)

　　8)Treatment of three wastes: waste water and waste residue containing acid or alkali after washing shall be discharged to the designated place of the buyer, which shall be treated by the buyer itself and equipped with sewage (tank and groove) ditch; waste gas generated by cleaning and drying shall be discharged outdoors.

　　■ Equipment composition

　　1)High pressure hot water cleaning power unit 1 set

It consists of high-pressure hot water cleaning machine and accessories (1 set), high-pressure water self-driven three-dimensional tank cleaning device (1 set), three-dimensional tank cleaning device lifting device (pneumatic, 1 set).

　　2)Hot air purification drying unit 1 set

[Air Intake Purification Level: 100,000]

　　3)1 set of cleaning and drying workbench and pipeline

　　4)1 set of electrical control system.

PLC+ touch screen automatic control, a full set of German Gaojie version of the control software.

　　Note: Water and wind heating methods: electric heating, steam, residual hot water or oil heat exchanger heat exchange.
