Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Types:
- Wall mounted type
- Water temperature:
- Cold water
- Mobile mode:
- Base fixed type
- Model:
- CVDRCS-500
- Use:
- Industrial use

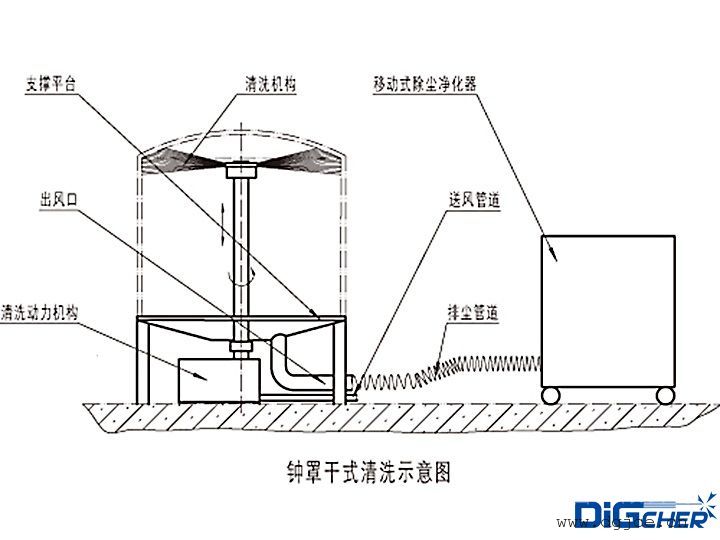

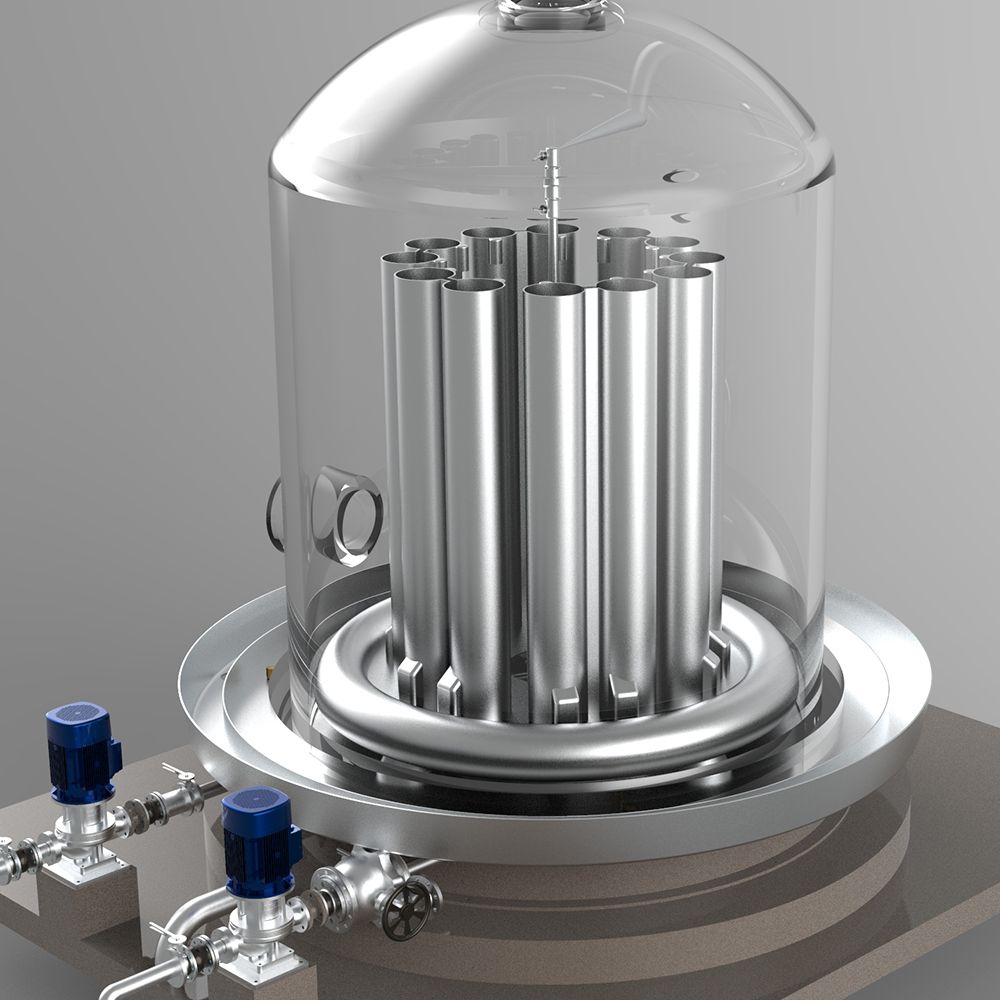

Polysilicon reduction furnace body and bell jar dry cleaning system is suitable for silane method polysilicon production process, and is used for pollution-free dry cleaning under the working condition of low adhesion of silicon pollutants in the reaction kettle of reduction workshop. When cleaning, the high-pressure gas blowing driven by the up-down moving and rotating mechanism and the special rotating brush combination mechanism are used to blow and contact clean the surface of the reaction kettle in a short distance to achieve the purpose of cleaning. By cleaning the rotating speed regulating mechanism, the requirements of various working conditions can be met. Cleaning at the same time using a special dust purifier one-time dust purification.
II. System characteristics
1. The device is a mobile unit structure;
2, purified air can reach 100,000 purification accuracy can be completely indoor emissions;
3. Fully enclosed dry cleaning method is adopted to ensure that there is no secondary pollution to the environment;
4, electrical design according to the requirements of the implementation of explosion, equipment is equipped with electrostatic export device;
5, the control mode can be fully automatic or manual control;
6, the total operating power is small, low noise.
III. Cleaning process
Hoist the reactor to the cleaning table Position connection Start the purifier Start rotation Up and down movement mechanism High pressure gas blowing along the wall Rotary brush Up and down contact movement Cleaning gas replacement Reactor hoisting inspection
IV. Equipment composition

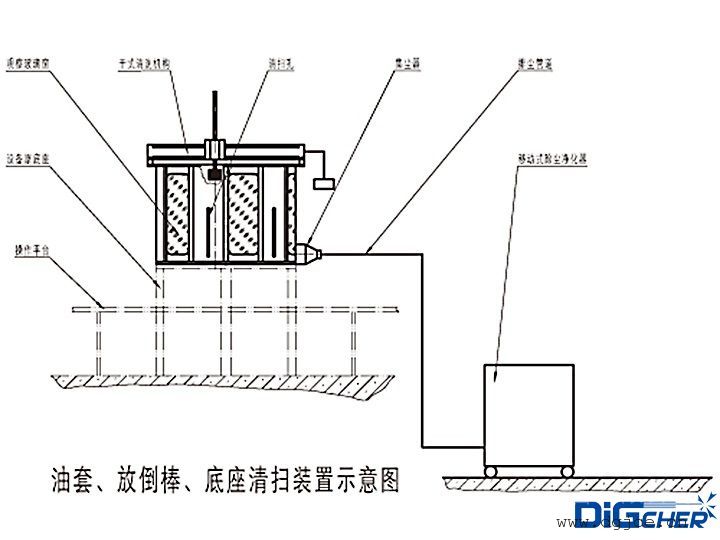

mainly consists of a cleaning platform, a gas blowing device, a dust collection conveying pipeline, a control valve, a power mechanism, a cleaning mechanism, quick joints of each pipeline, a dust removal purifier, an electric control system and the like.
The main parts are imported parts to ensure reliable and stable operation and long service life. Simple operation and maintenance.
